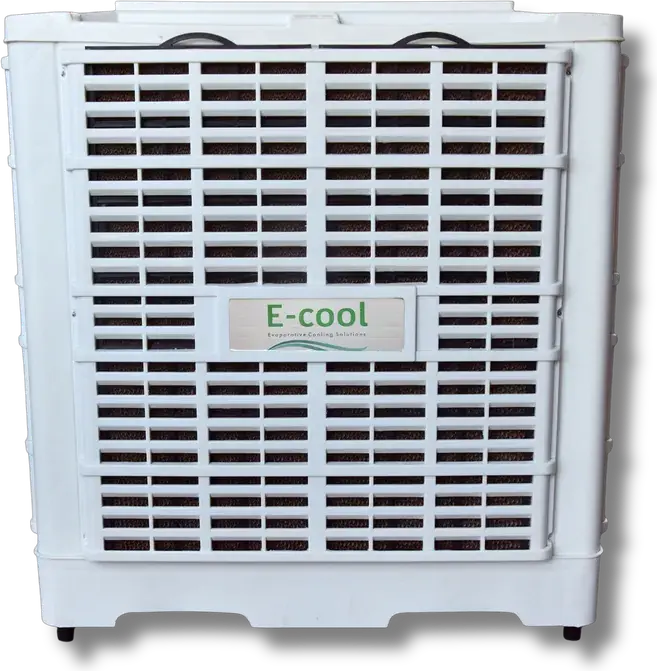

Industrial Duct Air Coolers
4.5 kW · up to 3,000 sq ft
The largest duct cooler in the range. A 4.5 kW three-phase unit with a 900 mm outlet that cools up to 3,000 sq ft, for warehouses and high-roof plants.
- Airflow50,000 CMH / 29,450 CFM
- Motor4.5 kW, 1440 RPM
- Cooling areaUp to 3,000 sq ft
- Water tank60 L
Get a quotation
Prices are quoted to order. Tell us the quantity and site location and our sales team will reply.
Or call +91 82918 51509, or email sales@ecool.in
Specifications
| Airflow | 50,000 CMH / 29,450 CFM |
|---|---|
| Motor | 4.5 kW, 1440 RPM |
| Power supply | 3 phase 415 V |
| Speed control | Single speed or VFD |
| Air discharge | Top / Down |
| Cooling area | Up to 3,000 sq ft |
| Cooling pads | 4 sides, 1110 × 1000 × 100 mm |
| Fan | Axial, 4-leaf blade |
| Water tank | 60 L |
| Water consumption | 25–30 L/hour |
| Air outlet | 900 × 900 mm |
| Overall size | 1500 × 1500 × 1500 mm (H) |
| Weight | 125 kg |
| Body | UV-stabilised PPCP engineering plastic |
| Colour | White |
| Warranty | 3 years on body, 1 year on motor (motor warranty applies when a phase preventer is fitted) |
Models
| E50-3S | Three phase · single speed |
| E50-3V | Three phase · VFD variable speed |
