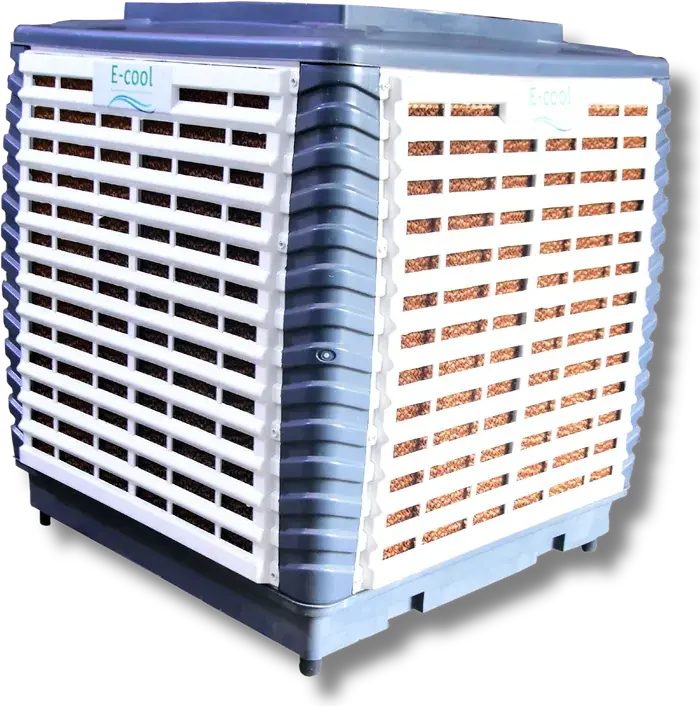

Industrial Duct Air Coolers
1.5 kW · up to 1,200 sq ft
A 1.5 kW duct cooler for workshops and mid-size sheds, cooling up to 1,200 sq ft per unit. Available with a single-phase VFD for variable speed.
- Airflow22,000 CMH / 12,950 CFM
- Motor1.5 kW, 1440 RPM
- Cooling areaUp to 1,200 sq ft
- Water tank30 L
Get a quotation
Prices are quoted to order. Tell us the quantity and site location and our sales team will reply.
Or call +91 82918 51509, or email sales@ecool.in
Specifications
| Airflow | 22,000 CMH / 12,950 CFM |
|---|---|
| Motor | 1.5 kW, 1440 RPM |
| Power supply | 1 phase 220 V or 3 phase 415 V |
| Speed control | Single speed or VFD |
| Air discharge | Top / Down |
| Cooling area | Up to 1,200 sq ft |
| Cooling pads | 4 sides, 880 × 790 × 100 mm |
| Fan | Axial, 4-leaf blade |
| Water tank | 30 L |
| Water consumption | 12–18 L/hour |
| Air outlet | 670 × 670 mm |
| Overall size | 1100 × 1100 × 1050 mm (H) |
| Weight | 77 kg |
| Body | UV-stabilised PPCP engineering plastic |
| Colours | White, grey, or white and grey |
| Warranty | 3 years on body, 1 year on motor (motor warranty applies when a phase preventer is fitted) |
Models
| E22-3S | Three phase · single speed |
| E22-1S | Single phase · single speed |
| E22-1V | Single phase · VFD variable speed |
