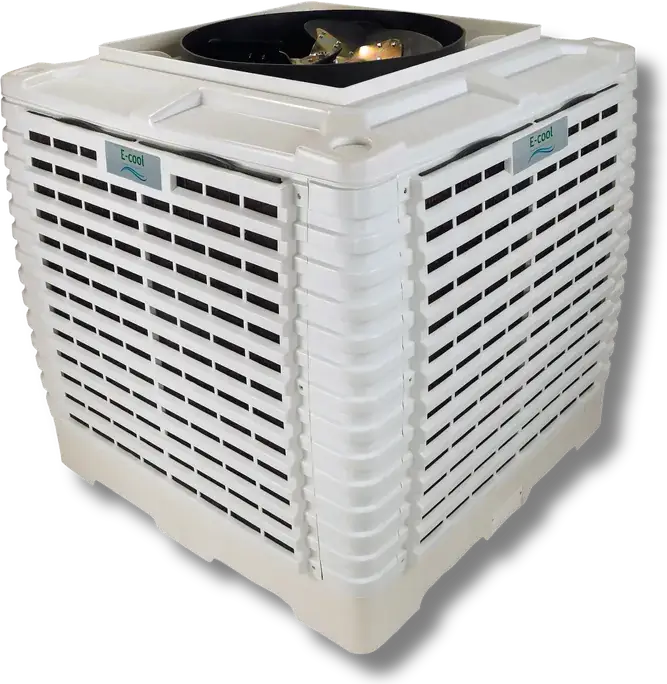

Industrial Duct Air Coolers
3 kW · up to 2,000 sq ft
A 3 kW duct cooler for large production floors, cooling up to 2,000 sq ft per unit. Offered in a Standard line and a Made in India line.
- Airflow30,000 CMH / 17,657 CFM
- Motor3 kW, 1440 RPM
- Cooling areaUp to 2,000 sq ft
- Water tank40 L
Get a quotation
Prices are quoted to order. Tell us the quantity and site location and our sales team will reply.
Or call +91 82918 51509, or email sales@ecool.in
Specifications
| Airflow | 30,000 CMH / 17,657 CFM |
|---|---|
| Motor | 3 kW, 1440 RPM |
| Power supply | 3 phase 415 V or 1 phase 220 V |
| Speed control | Single speed or VFD |
| Air discharge | Top / Down / Side |
| Cooling area | Up to 2,000 sq ft |
| Cooling pads | 4 sides, 870 × 870 × 100 mm |
| Fan | Axial, 4-leaf blade |
| Water tank | 40 L |
| Water consumption | 15–20 L/hour |
| Air outlet | 790 × 790 mm |
| Overall size | 1300 × 1300 × 1180 mm (H) |
| Weight | 100 kg |
| Body | UV-stabilised PPCP engineering plastic |
| Warranty | 3 years on body, 1 year on motor (motor warranty applies when a phase preventer is fitted) |
Models
| E30-3S | Standard · three phase · single speed |
| E30-1S | Standard · single phase · single speed |
| E30-3V | Standard · three phase · VFD |
| E30i-3S | Made in India · three phase · single speed |
| E30i-1S | Made in India · single phase · single speed |
| E30i-3V | Made in India · three phase · VFD |
