Exhaust Fans
XD80 · 0.37 kW · 18,000 m³/h

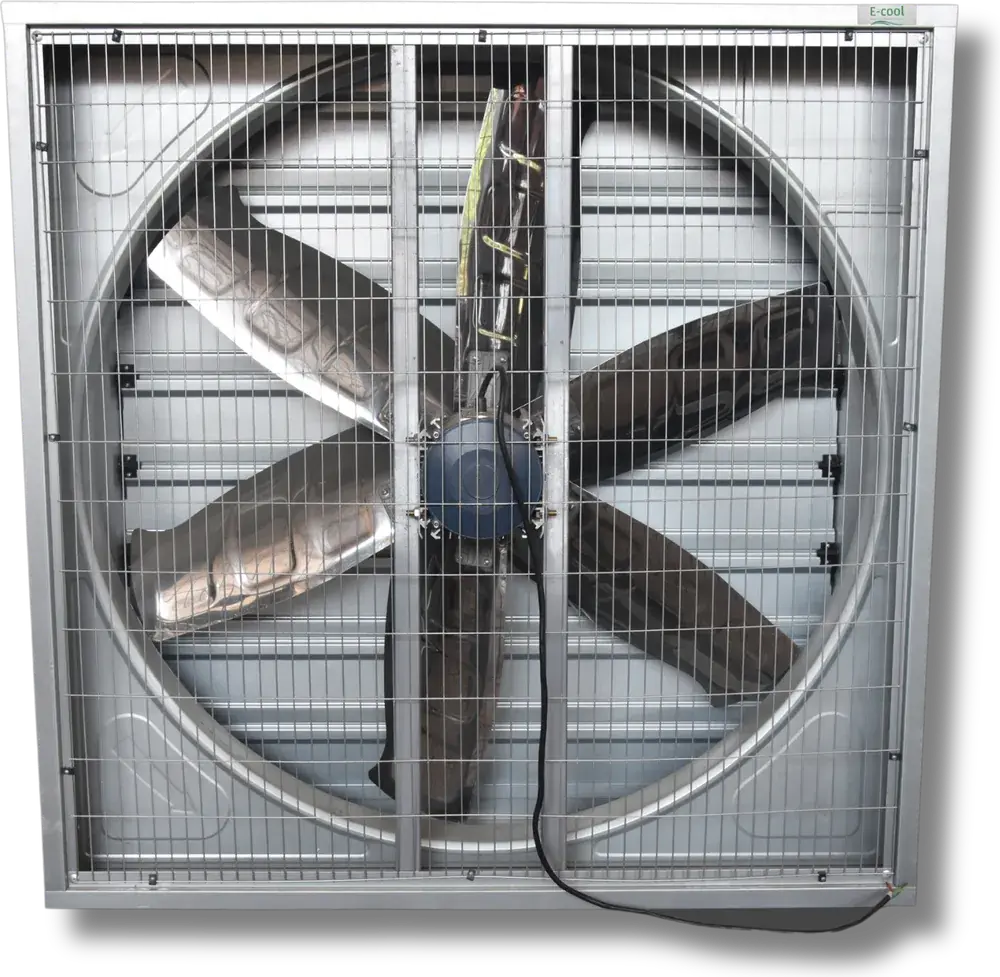

An 800 mm direct-drive exhaust fan for poultry sheds, kitchens and small workshops. The 0.37 kW motor drives the blades directly, with no pulley or belt to wear out or adjust. Made in India with a 1.2 mm body and SS-304 blades.
- Airflow18,000 m³/hour
- Motor0.37 kW, direct drive
Get a quotation
Prices are quoted to order. Tell us the quantity and site location and our sales team will reply.
Or call +91 82918 51509, or email sales@ecool.in
Specifications
| Size | 800 mm |
|---|---|
| Motor | 0.37 kW, direct drive |
| Airflow | 18,000 m³/hour |
| Total pressure | 80 Pa |
| Fan speed | 560 RPM |
| Weight | 53 kg |
| Blades | 6, SS-304 stainless steel |
| Body | 1.2 mm thick |
| Noise | 70 dB or less |
| Depth | 400 mm |
Models
| XD80 | 800 mm · 0.37 kW · direct drive |
Size range
| Model | Size | Motor | Airflow | Pressure | Speed | Weight |
|---|---|---|---|---|---|---|
| XD80 | 800 mm | 0.37 kW | 18,000 m³/h | 80 Pa | 560 RPM | 53 kg |
| XD100 | 1000 mm | 0.55 kW | 23,000 m³/h | 100 Pa | 560 RPM | 95 kg |
| XD138 | 1380 mm | 1.1 kW | 44,000 m³/h | 130 Pa | 460 RPM | 180 kg |
